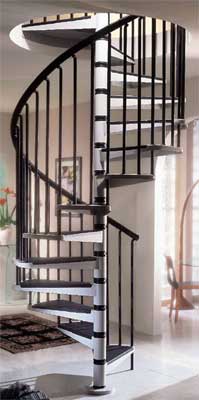

Gamia Metal Spiral Staircases
The design of Gamia Metal was made holding in consideration the installation problems;
the results is a spiral stair of different diameters, with railings always according to code
and with rise adjustement’s system which assures a climb of every height in any project.
Thanks to the above system and to pratical instructions for the assembly, the installation is a snap.
The distinctive feature of Gamia Metal is surely the design of railings. Vertical spindles
connected with the flexuous handrail assure an absolute structural rigidity.
Diameters = Ø 120 cm - 140 cm - 160 cm.
Steps - Manufactured from stamped plate, with rubber matting; step angle 30°, round or triangular landing angle 60°,
square landing angle 90° for round or square opening.
Riser heights - standard min. 210 mm. (8 1/4”) - max 230 mm. (9”) (for risers 200 - 210 mm.
(7 7/8” - 8 1/4”); 230 ÷ 240 mm. (9” - 9 1/2”); it is possible to cut the balusters during the assembly.
Note UK Building Regs has a Maximum Rise Height of 220mm.
Please Note the 1200mm diameter Option will not comply with UK Building Regulations

Railing - with metal steel tubing balusters ø 22 mm. (7/8”)(clear space among the balusters< 100 mm., 4”);
flexible plastic handrail (handrail height = 1000 mm, 39 3/8”)
Finishes and colours - metal: durable powder coat (steps - grey ; balusters- grey)
; plastic components, rubber matting and screws: black
Trade Price List
Product Code Description Price in GBP £ excl VAT
K1/1200 GAMIA METAL 1200mm PRIMARY PACK (11 TREADS)
K1/1212 GAMIA METAL 1200mm PRIMARY PACK (12 TREADS)
Home
Spiral Staircases
Gamia Metal Silver Grey
Gamia Wood
Gamia Wood Silver Grey
External Spiral
Mini Plus
Spacesaver Staircases
Contact Details
Useful Information - Spiral stairs

K1/1400 GAMIA METAL 1400mm PRIMARY PACK (11 TREADS)
K1/1412 GAMIA METAL 1400mm PRIMARY PACK (12 TREADS)
K1/1600 GAMIA METAL 1600mm PRIMARY PACK (11 TREADS)
LANDING PACKS

K9/22

GAMIA METAL 1200mm ROUND LANDING PACK
K9/26 GAMIA METAL 1200mm FLAT LANDING PACK
K9/42 GAMIA METAL 1400mm ROUND LANDING PACK
K9/46 GAMIA METAL 1400mm FLAT LANDING PACK
K9/62 GAMIA METAL 1600mm ROUND LANDING PACK
K9/66 GAMIA METAL 1600mm FLAT LANDING PACK
ADDITIONAL TREAD PACKS
K9/92 GAMIA METAL 1200mm TREAD PACK
K9/94 GAMIA METAL 1400mm TREAD PACK
K9/96 GAMIA METAL 1600mm TREAD PACK
Delivery - We offer delivery on our Spiral Staircases please phone us on 01952 608853

To Order you can Phone us with your list on 01952 608853, Fax 01952 228679 or Email
